Description

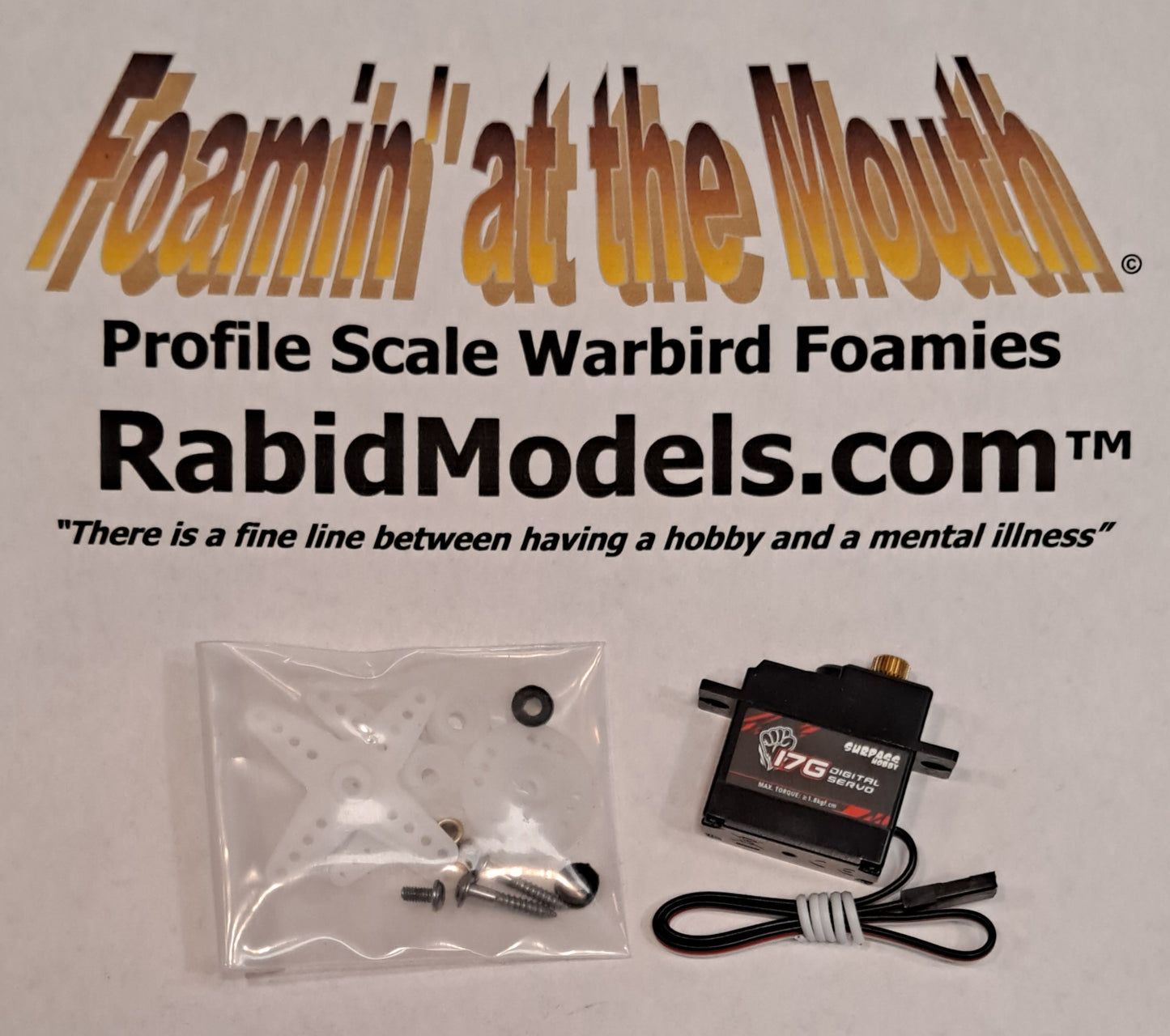

mini digital servo metal gear 17gm DIGITAL METAL GEAR MINI SERVOThis mini metal gear servo is appropriate for small RC models where extra strength is needed such as aircraft direct connect retracts and nose gear steering for aircraft and RC cars. The 17gm servo is physically larger than our other small servos, but also has more power (torque). This servo weighs approx. 17 grams (13. 5 gm including the wire and connector). Supplied with plastic servo arms and mounting screws. SPECIFICATIONS: Brand: Surpass Hobby
This mini metal-gear servo is appropriate for small RC models where extra strength is needed - such as aircraft direct-connect retracts and nose-gear steering for aircraft and RC cars. The 17gm servo is physically larger than our other small servos, but also has more power (torque).
This servo weighs approx. 17 grams (13.5 gm including the wire and connector). Supplied with plastic servo arms and mounting screws.
SPECIFICATIONS:
Brand: Surpass Hobby part# S0017M (metal gear)
Torque: 1.5 kgf.cm at 4.8V; 1.8 kgf.cm at 6V;
No load speed: 0.13s/60 degree at 4.8V
Product weight: 17g - 21gm with wire
Outside dimension: 28 x 13.2 x 29.6mm (1.1 x 0.52 x 1.2inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
FYI: The two halves of the servo's plastic outer case are held together by micro-size screws, not by a plastic band. Wire has universal connector.
